IPOQLOR®

Offline chlorine generator for public pools

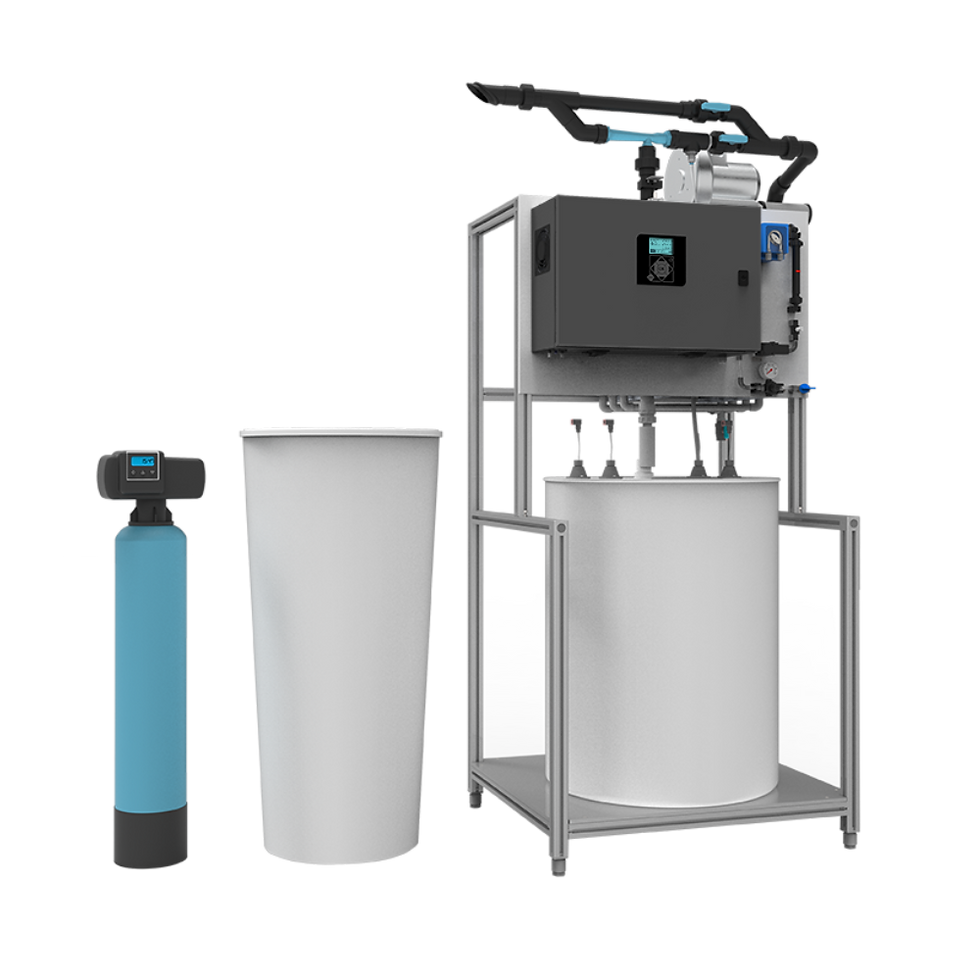

IPOQLOR®, the cost-saving, powerful and tailor-made chlorine generator

Placed in a machine room, IPOQLOR® produces chlorine from softened water and salt according to the very effective principle of salt electrolysis. Easy to install and use, this solution has been developed for public and commercial pools.

Economical over the long term: salt, the raw material of electrolysis, allows a significant reduction in the costs of transport, storage and handling.

Powerful and tailor-made: Designed to easily integrate with existing installations, the IPOQLOR® generator produces a highly active chlorine solution that can be used in situ.

4 main common chemical treatment drawbacks:

Risk of accidents linked to the handling storage and transport of chemical products

Deterioration in chlorine quality over the time

Operating costs of conditioned chlorine

Regular and expensive maintenance

PROCESS

1/ The generator produces a chlorinated solution and pours it directly into a storage tank.

2/ A dosing pump* controlled by an automatic control system feeds the pool according to demand. The treatment of swimming pool is ensured automatically

3/ The pool water is kept disinfected and disinfecting permanently, ensuring comfort and safety for bathers

However, over-sizing of pumps and injection lines may be necessary.

*Automatic control and injection systems already installed on the system are compatible with IPOQLOR®.

PC 140

1/ CONTROL AND PRODUCTION BOX

Easy to use: The BOOST mode allows to launch an automatic filling program in a natural way or with predefined timetables

Convenient: LED status indicator allows to
check quickly the facility operating properly
(PC280 and PC560).

2/ PRODUCTION CELLS

Long cell lifespan: cell lifespan is estimated at 10 000 operating hours

Cell maintenance warning: after 1000
operating hours, an integrated lamp timer
triggers a written message to check plates
condition.

3/ SOFTENER

High filtration capacity: less frequent
regeneration due to a higher resin volume.

PC 280

4/ SATURATED BRINE TANK

Ease of maintenance: wide box opening to add easily and quickly the maximum salt level.

High storage capacity: to add salt level punctually

5/ STORAGE TANK

UV-treated tank: preserving pure and fresh
chlorine.

Free-moving suction: allows hypochlorite
suction.

Level probe: allows to avoid the dosing pump deactivation

Overflow sensor: in case of chlorine
overproduction, the sensor automatically
switches off the system.

Effective maintenance: removable level
sensors to facilitate its maintenance or
replacement.

6/ PUMP

Consumption optimization: pump injects
automatically the perfect brine volume in
production cells

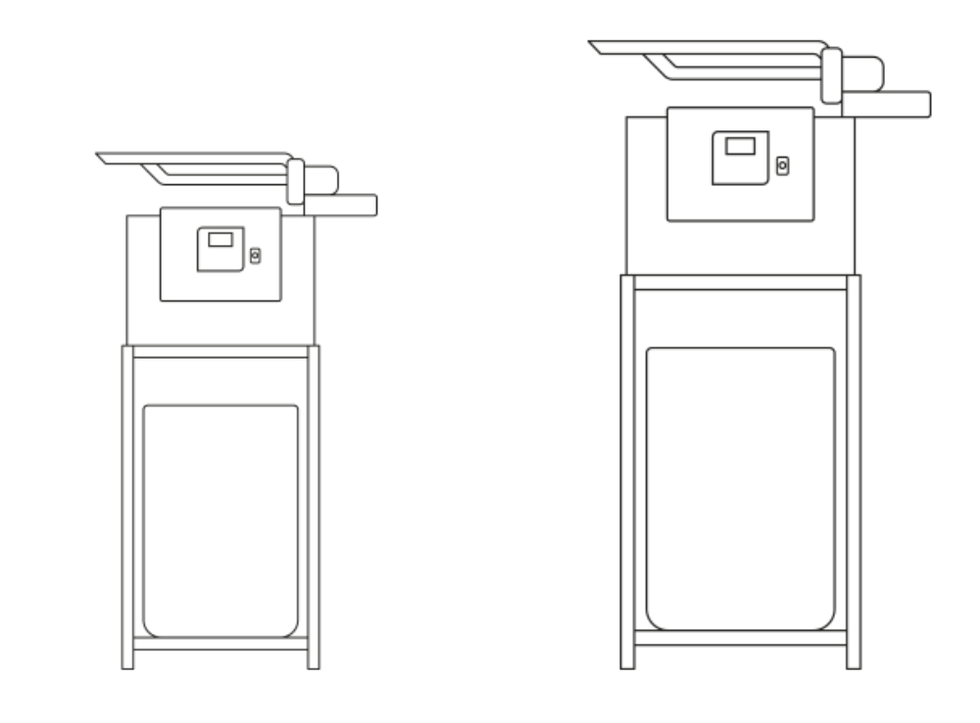

PC 560

7/ HYDROGEN EXHAUST SYSTEM

H2 alarm: if an anomaly is detected, a safety
mode is triggered and automatically switches off the production of chlorine.

8/ CONNECTIVITY

Real-time remote control:

Thanks to a SIM card inserted in the system, managers (pool directors, maintenance technicians, hotel managers, etc.) receive real time news and alerts by SMS.

Remote management: connect pro

Thanks to a simple local network connection, you can centralize remotely and in real-time information on water quality. Thus, by checking pool parameters on Connect Pro, you significantly reduce your moves.

The effectiveness of chlorine without the disadvantages

Chlorine is the most powerful disinfectant known on pool market. The IPOQLOR® solution produces a fresh chlorine for in situ use.

EFFECTIVENESS: production of fresh and pure chlorine without alteration, unlike conditioned chlorine which is sensitive to the surrounding factors (light, polluted air, temperature…)

STRENGTH: highly active hypochlorite solution from a low concentration of chlorine. A storage tank allows automatic superchlorination according to the actual pool needs.

HEALTH: high disinfectant power removing almost all chloramines, so harmful to the health of bathers and responsible for unpleasant odors.

RESPECT FOR BATHERS’ HEALTH: no more red eyes, no more itchy skin, no more chlorine odour, no more faded swimwear.

MAINTENANCE SAFETY: removal of all problems due to transport, storage and handling of conditioned chlorine: cartridge masks, explosion hazards, containment of the chlorine storage area.

EASE OF MAINTENANCE: simplified cleaning procedure. A descaling of the cells every 1000 operating hours (depending on use) is sufficient.

COST-SAVING: significant reduction in transport and storage costs: low cost of use, salt is half the cost of conditioned chlorine; Storage in large quantities, drastic reduction in delivery times and constraints related to storage regulations.

EASE OF INSTALLATION: easy embedding with existing installations.

PROTECTION OF EQUIPMENT OVER LONG TERM: the low concentration of the chlorinated solution and the absence of salt in the basin prevent corrosion.

So many reasons to adopt IPOQLOR®!

A very simple operating principle

1/ A softener feeds the installation with softened water

2/ Saturated brine is obtained on site from softened water and salt.

3/ The brine is injected into the softened water stream before the production cell lines.

4/ Softened water and salt are converted into a solution
of sodium hypochlorite (NaClO) according to saltwater
chlorination process.

5/ The solution of sodium hypochlorite is poured, by gravity, into a storage tank equipped with level detectors. The production is triggered or stopped automatically depending on the position of the level detectors in order to constantly maintain the required stock of solution. The tank capacity varies depending on the model. Incorporate a free-moving suction with level sensor.

6/ The hydrogen produced is evacuated to the outside by a degassing chimney

7/ The control box independently manages the production of sodium hypochlorite (NaClO). It allows to maintain a constant supply of solution in order to guarantee, in all circumstances, the ideal chlorine level in the basin.

8/ The supply of the chlorinated solution tank is controlled by automatic chlorine regulation (optional). The injection is done by a large flow metering pump

9/ SMS Alerts/Remote fleet management.

IPOQLOR® installation diagram
